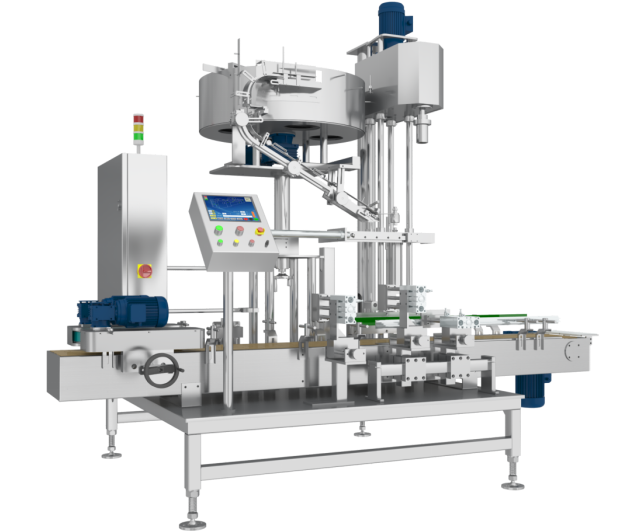

Automatic Capping Machine Featuring Cap Grabbing and Capping Mechanism Suitable for Various Bottle Cap Specifications
Automatic Capping Machine Featuring Cap Grabbing and Capping Mechanism Suitable for Various Bottle Cap Specifications
起源の場所:
中国江蘇
ブランド名:
JWIM
モデル番号:
FX-1D
連絡 ください
引金 を 求め て ください
製品詳細
生産能力:
≤500 BPH
合格率:
99.9%
適当なバレルのタイプ:
最小:200×140×320mm 最大:290×260×410mm
ボトルキャップ仕様:
Φ35~75mm H20~40mm
空気圧:
0.6~0.8MPa
電気の源:
~220V 50Hz
力:
1.2kw
重さ:
700kg
全体の寸法:
2495×1500×2150mm(長さ×幅×高さ)
支払いと送料の条件
最小注文数量
1個
価格
$10000PCS
パッケージの詳細
木製ケース
受渡し時間
30営業日
支払条件
LC、T/T
供給の能力
1か月あたり1個
関連製品
連絡 ください
今連絡してください
製品説明

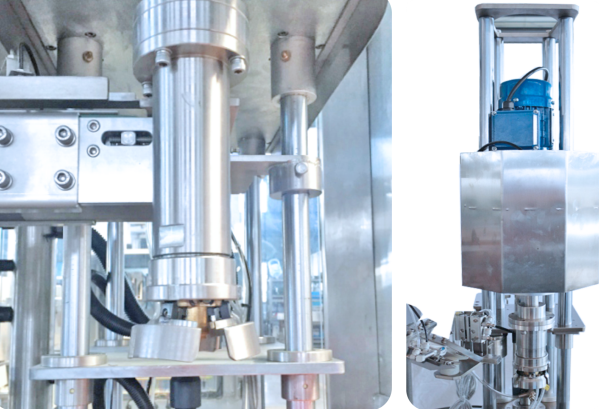

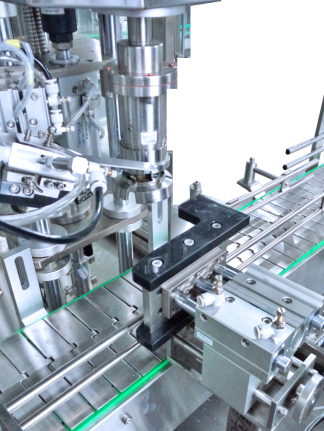

FX-1D Automatic Single-head Capping Machine 1.Introduction This machine consists of cap transfer mechanism, cap grabbing and capping mechanism, conveying mechanism and control system. The whole machine is simple in structure, easy to adjust, and suitable for automatic capping of 5-30L drums. 2.Technical Parameters 1 Production Capacity ≤500 BPH *Actual capacity varies according to product size, package material, material characteristics, etc. 2 Qualification Rate 99.9% 3
